Vextra Category 6 Cable

Rated to 550 MHz

SHOP


Vextra offers a high-quality made in the USA UTP Category 6 cable. This ETL listed CMR and CMP rated cable meets the performance specifications of TIA/EIA Cat 6 category cable up to 550 MHz. The four conductor pairs are precisely twisted together for the maximum in transmission efficiency and protection from RF interference.

Offering - Riser / Plenum

Color Options - Gray, White, Blue, Yellow, Green, Orange, Violet, Red, Black


Specifications

Pair Identification


Pair 1

Blue/White w/Co-Extruded Blue Stripe on White Single

Pair 2

Orange/White w/Co-Extruded Orange Stripe on White Single

Pair 3

Green/White w/Co-Extruded Green Stripe on White Single

Pair 4

Brown/White w/Co-Extruded Brown Stripe on White Single

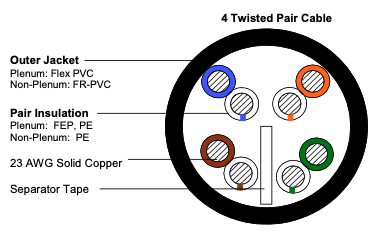

Material & Mechanical Specifications

Center Conductor  Solid Bare Copper
Conductor Size 23 AWG
Insulation FEP or PE
Jacket Flex PVC or FR-PVC
